Product range

The complete irrigation system, from source to root zone

Drip Irrigation Filtration Fertigation Sprinklers & Foggers Valves & Fittings Protected Cultivation

Drip Irrigation

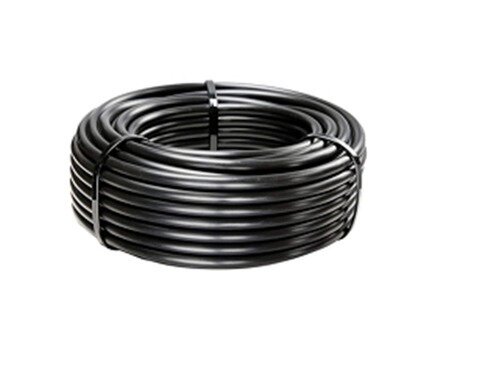

ISI Drip Inline Lateral / Emitting Pipe

Emitters slowly drip water into the soil at the root zone, keeping moisture at an optimal range so plant productivity and quality improve. It prevents disease by minimising water contact with leaves, stems and fruit, keeps rows between plants dry, reduces weed growth and saves time, money and water.

Available in 12 mm, 16 mm, 20 mm, 25 mm and 32 mm
Class I, II & III wall thickness — 0.4 mm to 1.4 mm
Discharge 2 LPH & 4 LPH, spacing 30 / 50 cm
IS 12786 : 1989, CM/L- 5900071215
We hold all 03 licences mandatory for drip irrigation systems

Standard: IS 12786 : 1989
Sizes: 12, 16, 20, 25, 32 mm
Discharge: 2 & 4 LPH

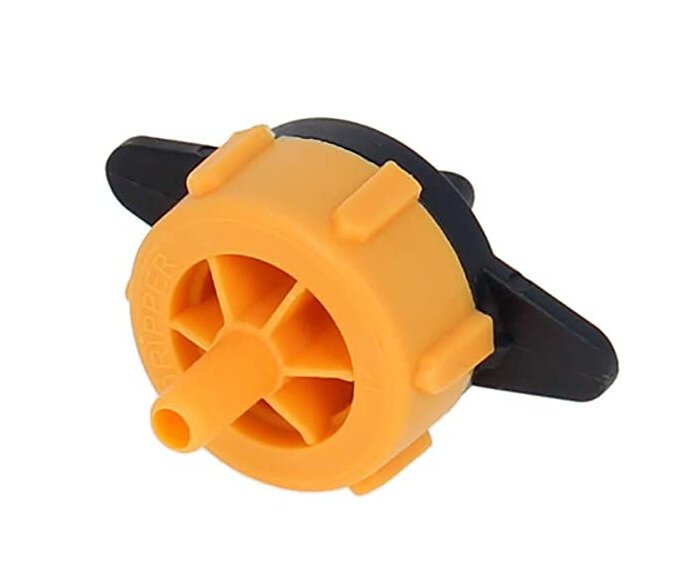

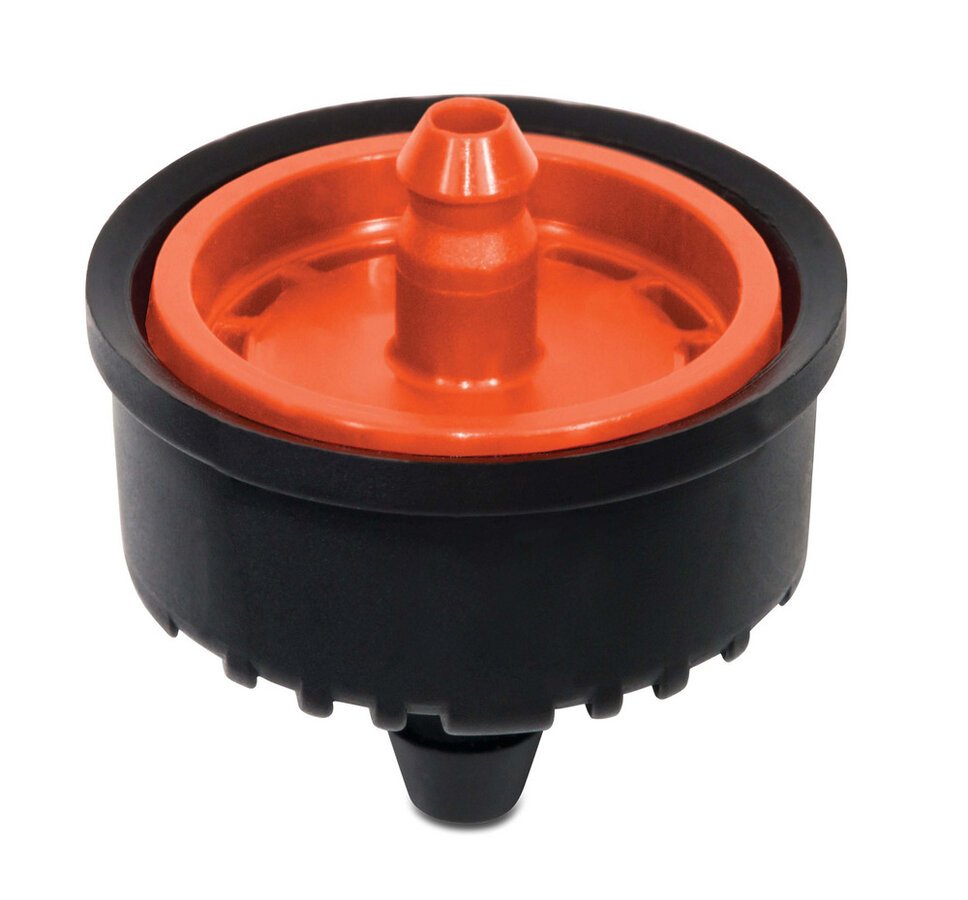

Online drip emitters for precise root-zone irrigation

Online Emitter

Unregulated online emitter, uniformity category B, with nominal emission rates of 2 LPH, 4 LPH and 8 LPH for accurate root-zone irrigation on any lateral size.

Nominal discharge: 2.0, 4.0, 8.0 l/h
Regulating pressure range: 0.5 – 4.0 bar
Very low CV, minimum recommended working pressure 1.0 bar
Non-leakage (CNL): opening 8.0 m, closing 3.0 m
Filtration recommendation: 130 micron (120 mesh)

Standard: IS 13487 : 1992
Licence: CM/L- 5900071510
Lateral sizes: 12 – 32 mm

Filtration

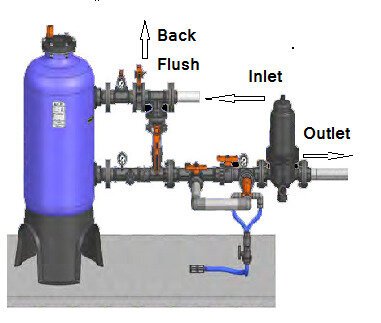

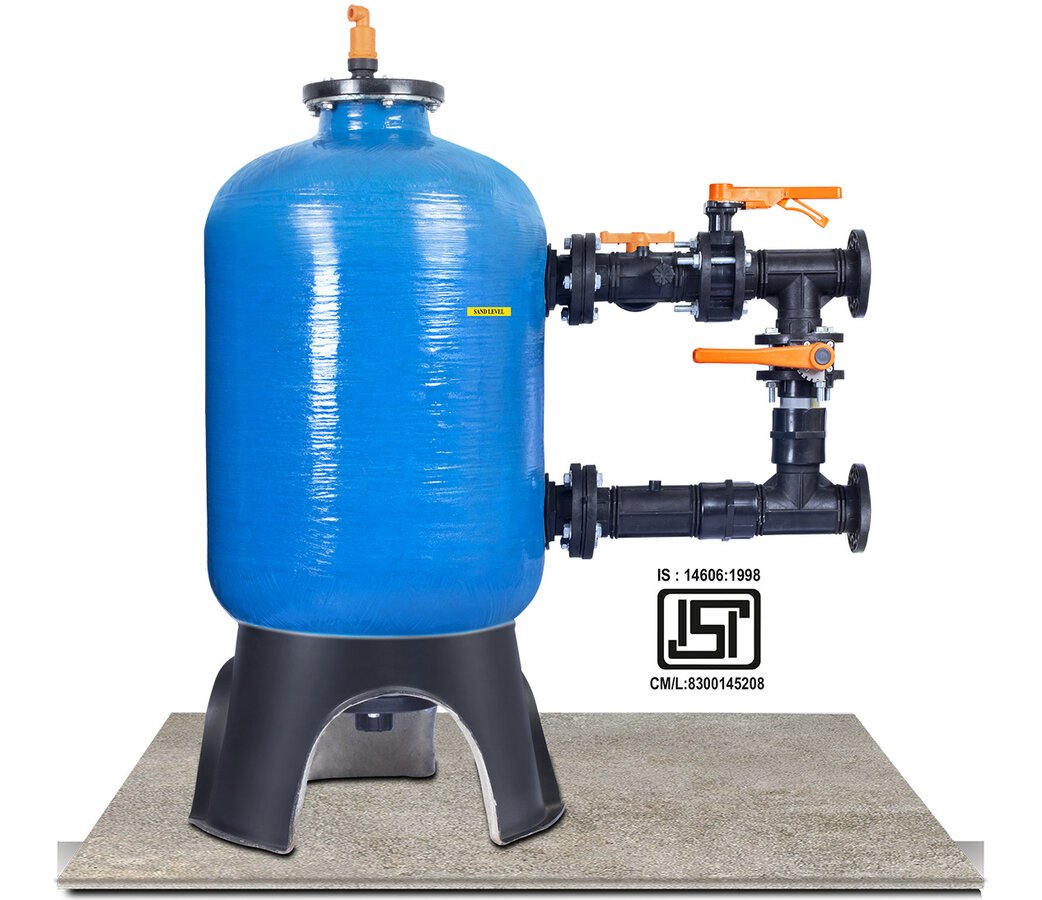

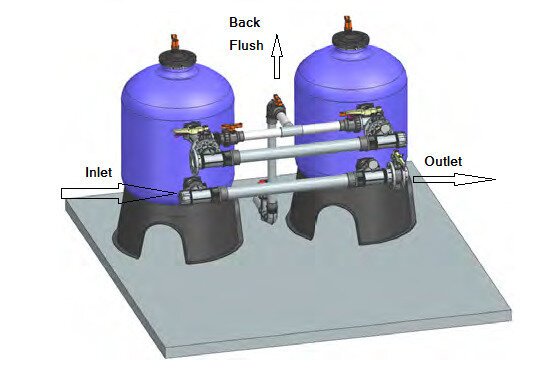

MachClean Sand Media Filter

Primary filtration to protect drip and micro-irrigation systems from emitter plugging — ideal for surface water from open wells, ponds, rivers or lakes containing organic contaminants, silt and clay. Suitable for use with fertilizers and acids.

Corrosion-free with 5 years warranty — advanced polymer technology
Reinforced glass fiber body, PPGF under-drain flutes for extended life
Anti-clogging flute design that reduces pressure drop
55% lighter than metal filters of equivalent capacity
All-weather compatible, large service ports for easy maintenance
Operates in manual or automatic mode

Material: FRP, EPDM, PPGF

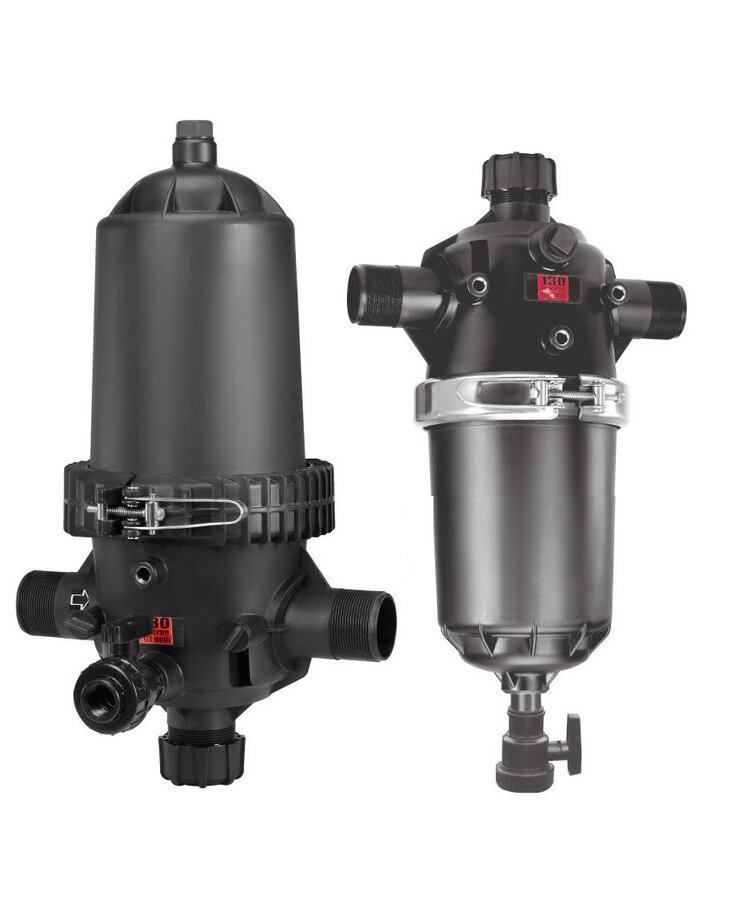

Plastic screen filters with SS-316 mesh cartridge

Screen Filter — Plastic (HT-124T / 124T HC)

2" T-type screen filter (25 m³/hr) made from a special chemically bonded, weather-resistant polymer with an SS-316 single mesh cartridge and a large drain port for easy flushing.

Inlet / outlet: 2" BSP male thread
Maximum operating pressure: 6 – 8 kg/cm²
Flow range 20 – 27 m³/hr, nominal 25 m³/hr
Filtration area 480 – 554 cm²
Available mesh: 80, 120, 150

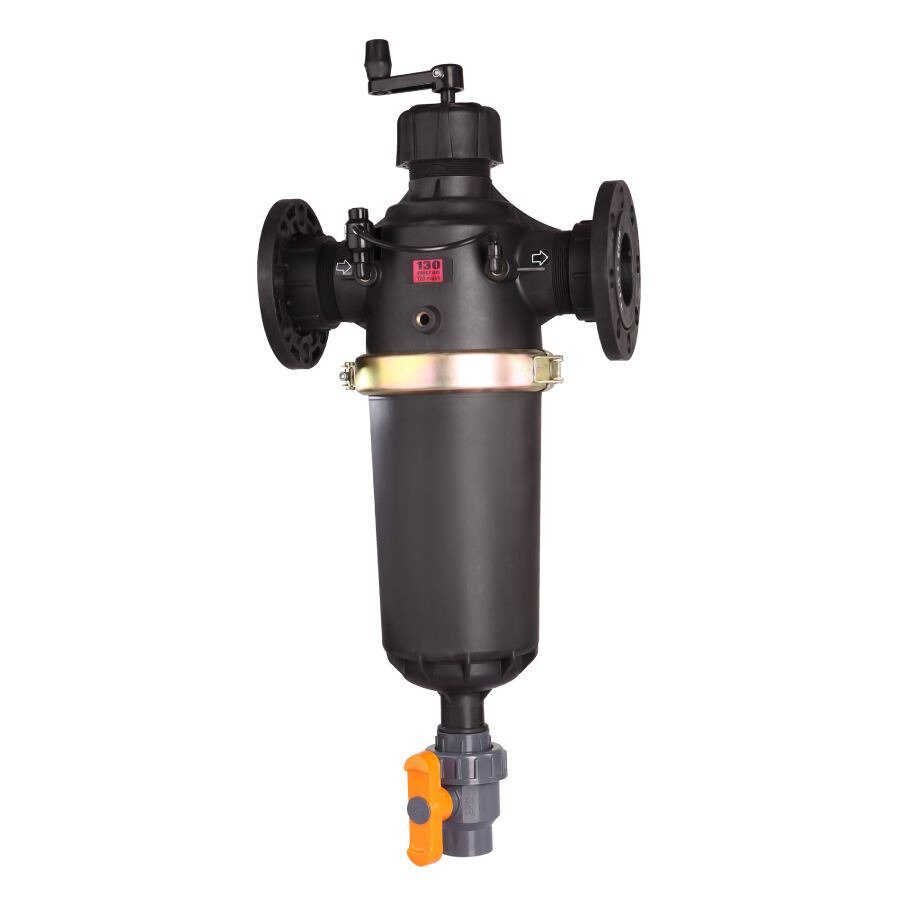

Semi-automatic screen filter for small farm holdings

Semi-Automatic Screen Filter 2", 2.5" & 3"

Suitable as a primary filtration device in small farm holdings. Made from special chemically bonded polymer for durability — easy to install and low maintenance.

Non-corrosive SS-316 stainless steel filter mesh
HT-124T-SA (2"), HT-125T-SA (2½"), HT-126T-SA (3")
Cleaning done online under pressure with the handle gripper
Clean when pressure differential reaches 0.5 kg/cm² (7 psi)
Secondary filter of 75-100 microns required to operate

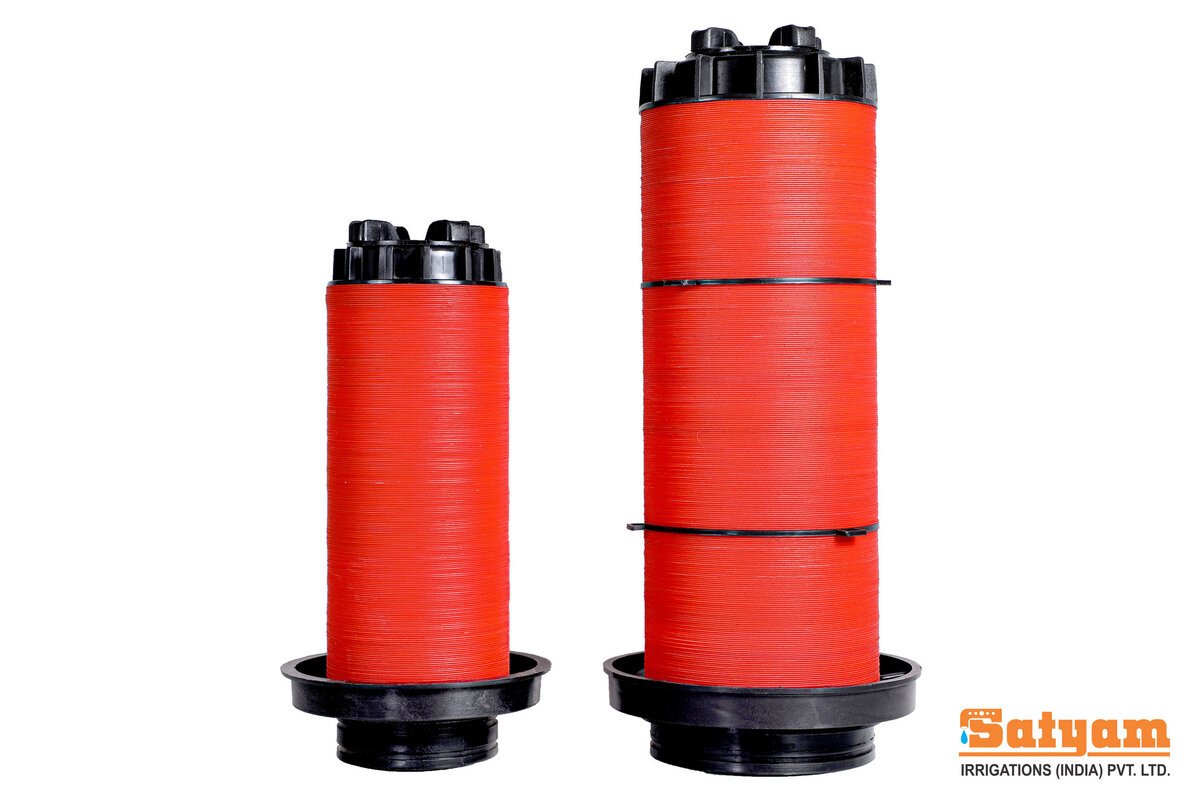

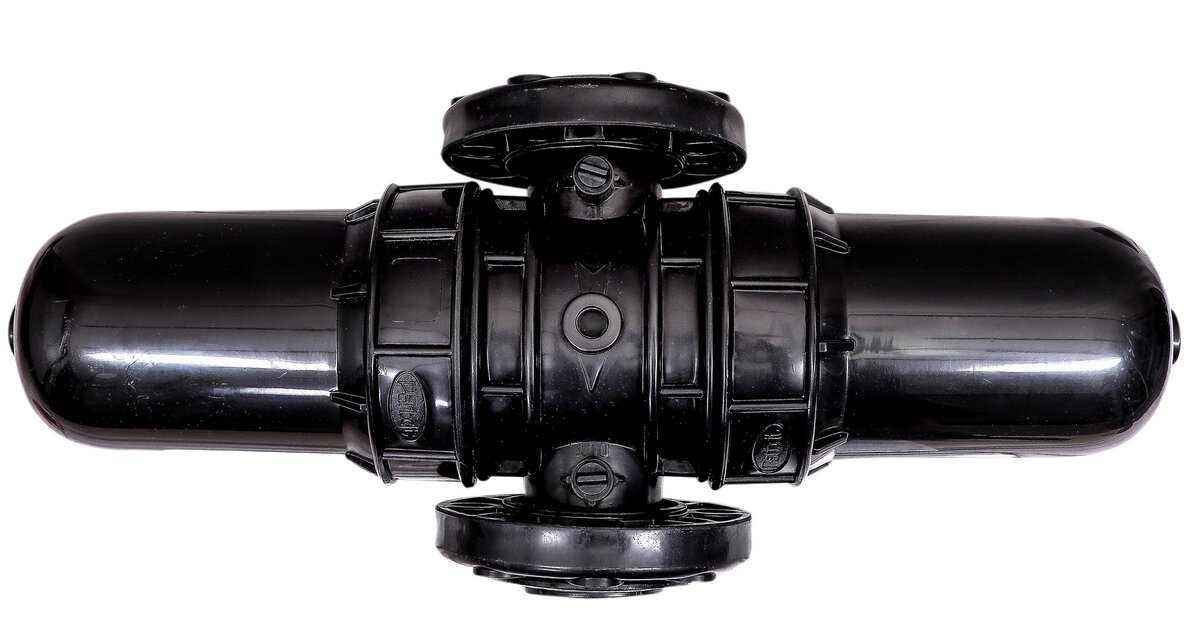

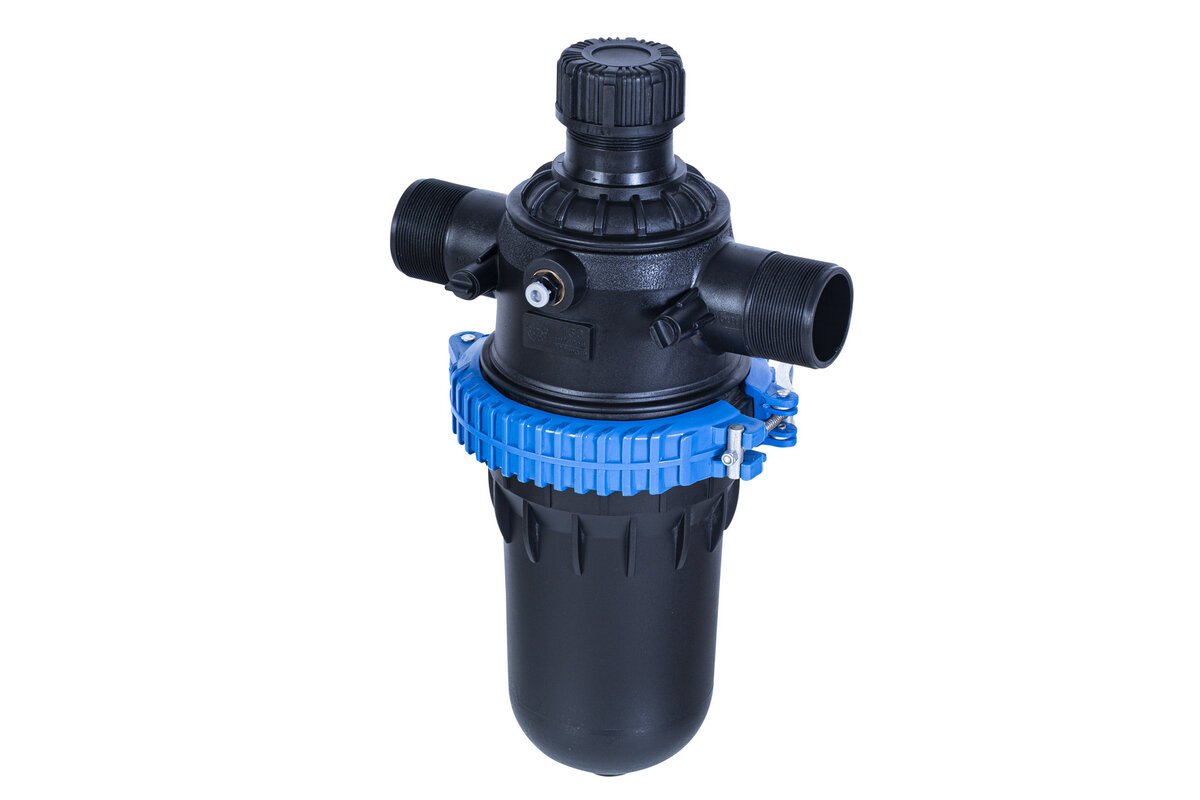

Disc Filter

Spring-loaded grooved disc cartridge filter with more than 95% filtration efficiency and a clogging indicator, cleanable in 90 seconds without dismantling.

Designed for pressure rating PN8 (8 bar)
Red clogging indicator pops up at 0.6 kg/cm² differential
Handle rotates 90° for cleaning without dismantling the filter
Hydro-cyclonic disc housing fan reduces cleaning frequency
Barrel with 1½" drain port and two pressure ports

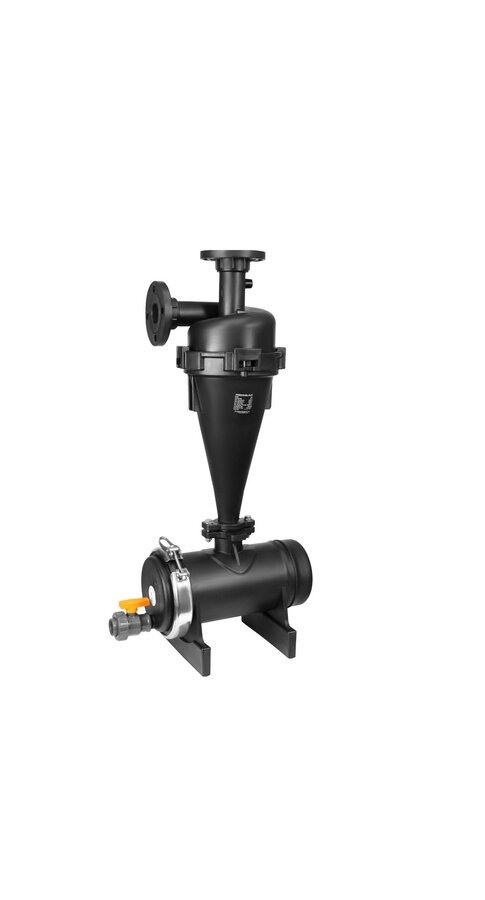

Hydrocyclone sand separator for irrigation systems

Hydrocyclone HT-144 / 145 / 146

Designed to filter sand out of water before irrigation. Made from reinforced engineering plastic and hydro-dynamically shaped for maximum centrifugal action; collected sand flushes out through the drain port.

Available in 2" (HT-144M), 2½" (HT-145M) and 3" (HT-146M)
Material: reinforced polypropylene / nylon, SS-316 clamp
Maximum operating pressure 6 kg/cm²
Flow range 15 – 40 m³/h, collector capacity 8 litre
BSP male threaded / flange / victaulic connections

Fertigation

Plastic Fertilizer Tank (30 Ltr, HT-117)

Used for chemical and fertilizer injection through drip and sprinkler systems. A pressure differential between inlet and outlet creates flow into the tank — simple to use and fully portable.

Vacuum breaker for fast air release and safe draining
Turbulent inlet flow for excellent mixing
Inlet and outlet valves to control the injection rate
MS plated handle for portability, thick wall for high pressure
UV & chemical resistant

Capacity: 30 litre
Operation time: 7 – 12 min as per differential

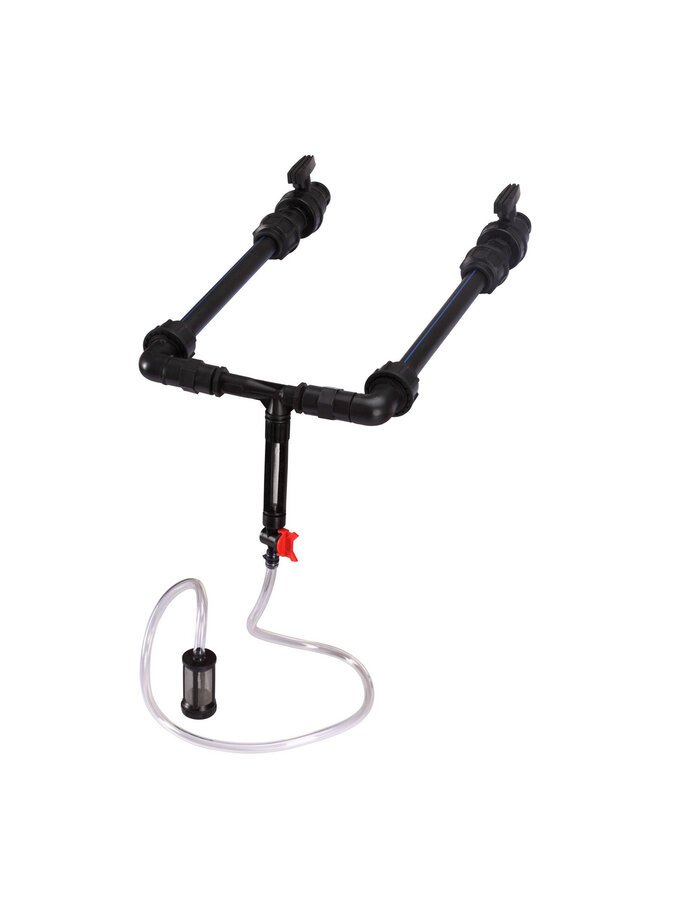

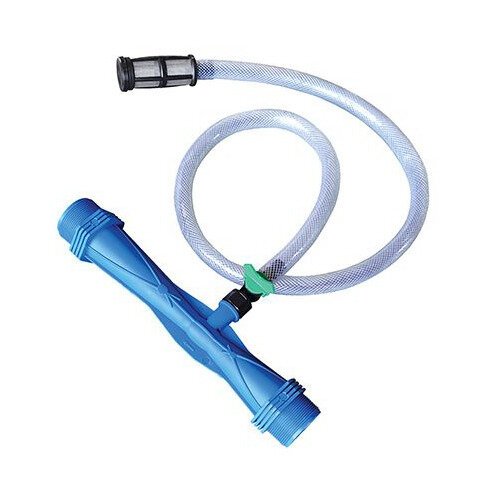

Venturi injector assembly for fertigation

Venturi Injector (¾" & 1")

Differential pressure injectors with maximum injector efficiency, suction capacity and fertilizer mixing. An in-built check valve protects the injected liquid from backflow, and the rotameter lets you measure the dose.

Model 112 (¾") and Model 113 (1")
Motive flow 750 – 1907 L/H (¾") and 2200 – 5720 L/H (1")
Water suction up to 190 L/H and 310 L/H respectively
In-built check valve against backflow

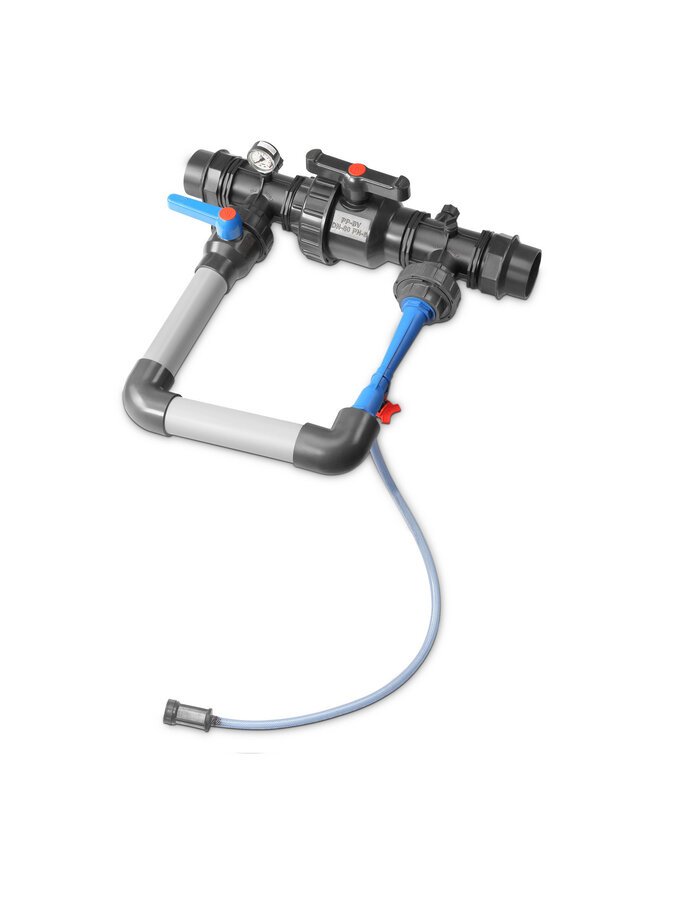

Fertigation Manifold

Manifold for venturi injector installation in 2", 2½" and 3" sizes, with single-union PP ball valve for smooth adjustment of pressure differential — saving energy and manpower.

Complete assembly with threaded and fusion welding options
2½" & 3" manifolds accept ¾" and 2" venturi injectors
¼" female threaded port for pressure gauge
Sizes: HT-164MTBVPPN (2"), HT-166MTBVPPN (3")
Specially designed for fertigation via sprinkler irrigation

Sprinklers & Foggers

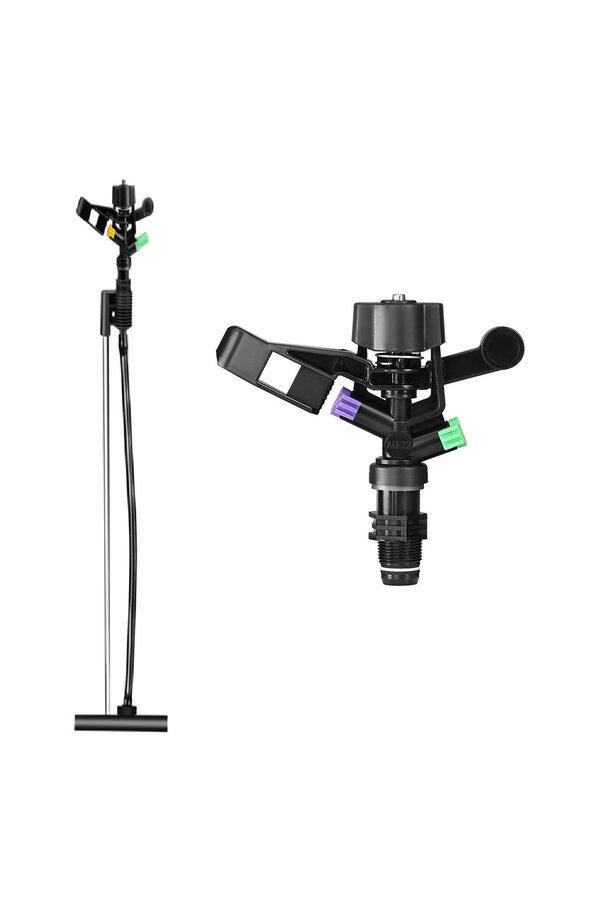

Mini Sprinkler

A boon for root and tuberous crops such as potato, turnip, sweet potato, radish, carrot and beetroot. It ensures uniform application and percolation of water and is easily retrieved at harvest.

Overhead light and frequent irrigation (3–5 mm/hr)
Operates at low pressure (1.5 – 2 kg/cm²)
Spacing 8m x 8m to 10m x 10m irrespective of crop spacing
Nozzle 2.4 x 1.8 mm, flow 386 – 655 lit/hr
Wetted diameter 17.5 – 20.0 m

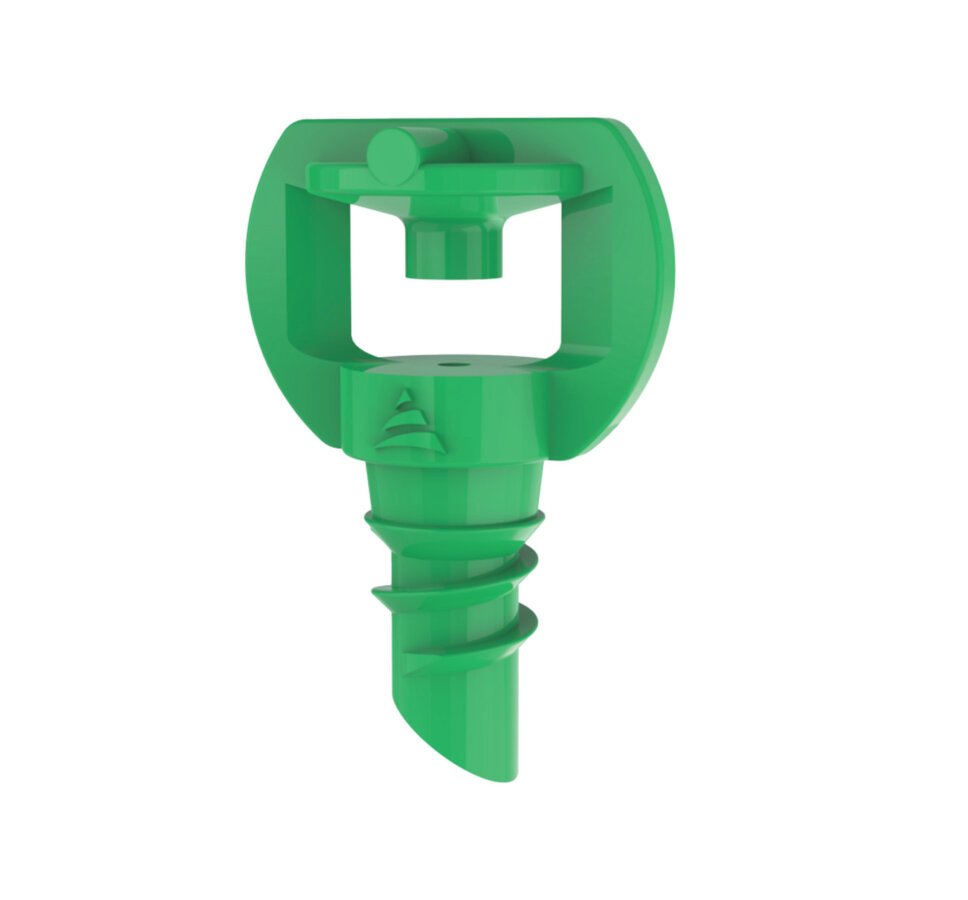

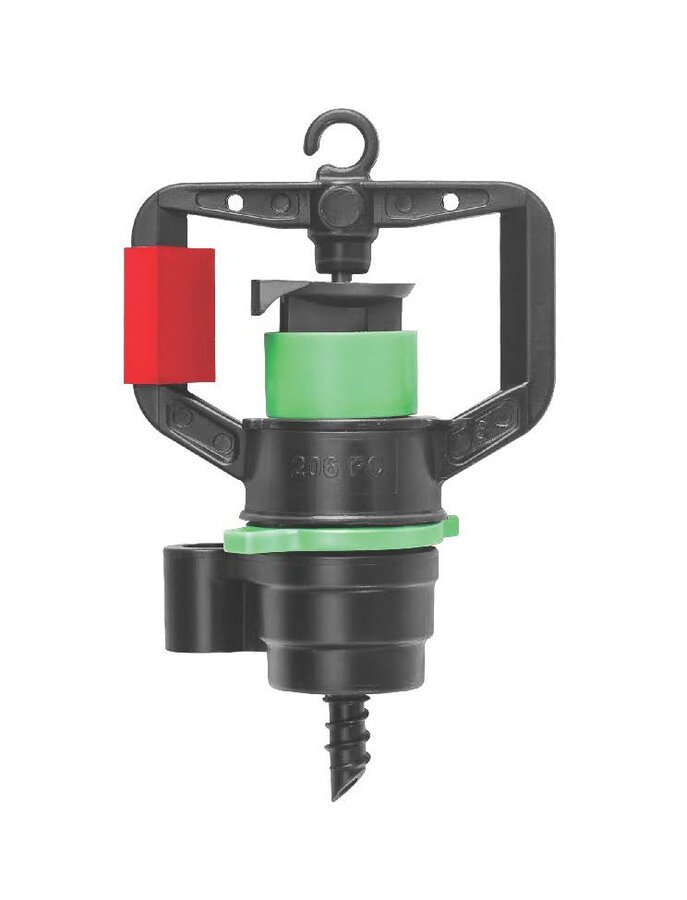

AQ-206PC flow-regulating micro sprinkler

Micro Sprinkler (AQ-206PC)

Flow-regulating micro sprinkler designed for consistent, uniform distribution in undulating terrain and long lateral lengths — ideal for nurseries, orchards and vineyards.

Constant flow between 2 to 4 bar pressure
Flow rate: 20, 28, 39, 62 LPH
Recommended spacing 3x3, 3.5x3.5 & 4x4 m
Two-stage wetted diameter control, insect-proof design
Circlip for easy cleaning, 4x7 mm PE/PVC tube, UV resistant

Fogger nozzle for greenhouse and poultry cooling

Fogger & Poultry Cooling System

Aquafog reduces temperature and increases humidity in greenhouses, poultry and cattle sheds, dispensing fine water droplets with uniform distribution and coverage.

Bridgeless design eliminates dripping
Interchangeable, acid-resistant parts
Average droplet size of 60 microns
Suitable for mud and concrete floors
Excellent evaporative cooling for poultry and livestock

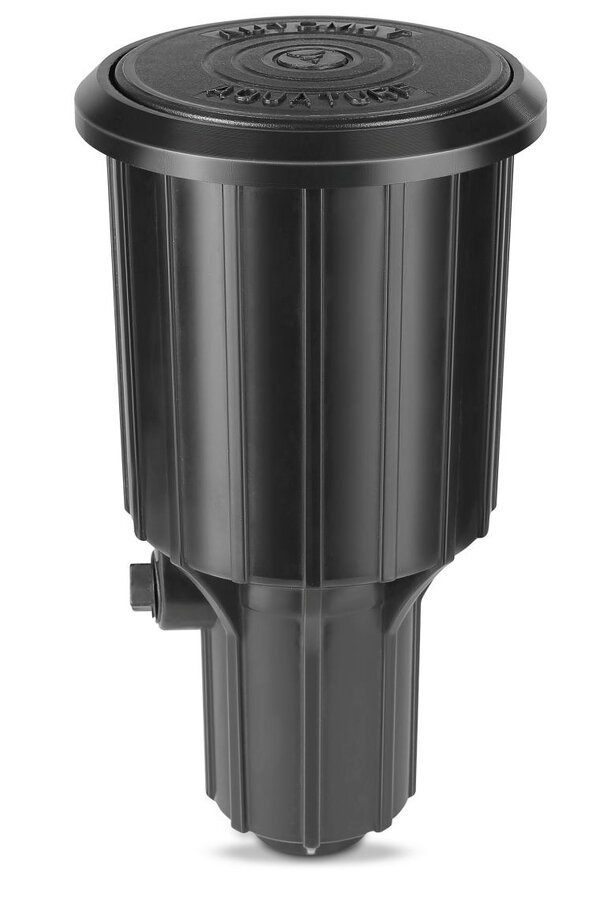

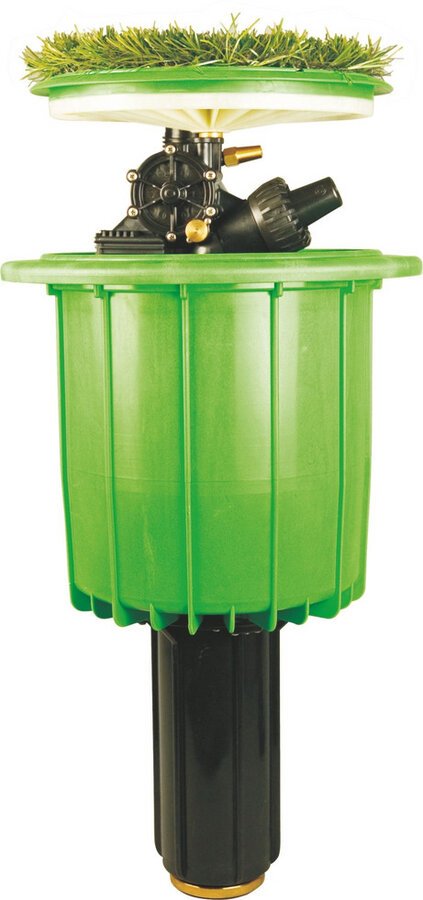

Pop-up impact sprinkler installed in turf

Pop-up Impact Sprinkler & Playground Pop Up

Pop-up sprinklers for underground installations in landscaping, recreational areas and public lawns, plus large-radius playground models for football, hockey, rugby and baseball fields.

Interchangeable, colour-coded nozzles
Heavy-duty ribbed plastic case for excellent grip
Adjustable full or part circle with diffuser screw
Double weighted arm for balanced, smooth rotation
Sand-resistant pressure-activated wiper seal

Valves & Fittings

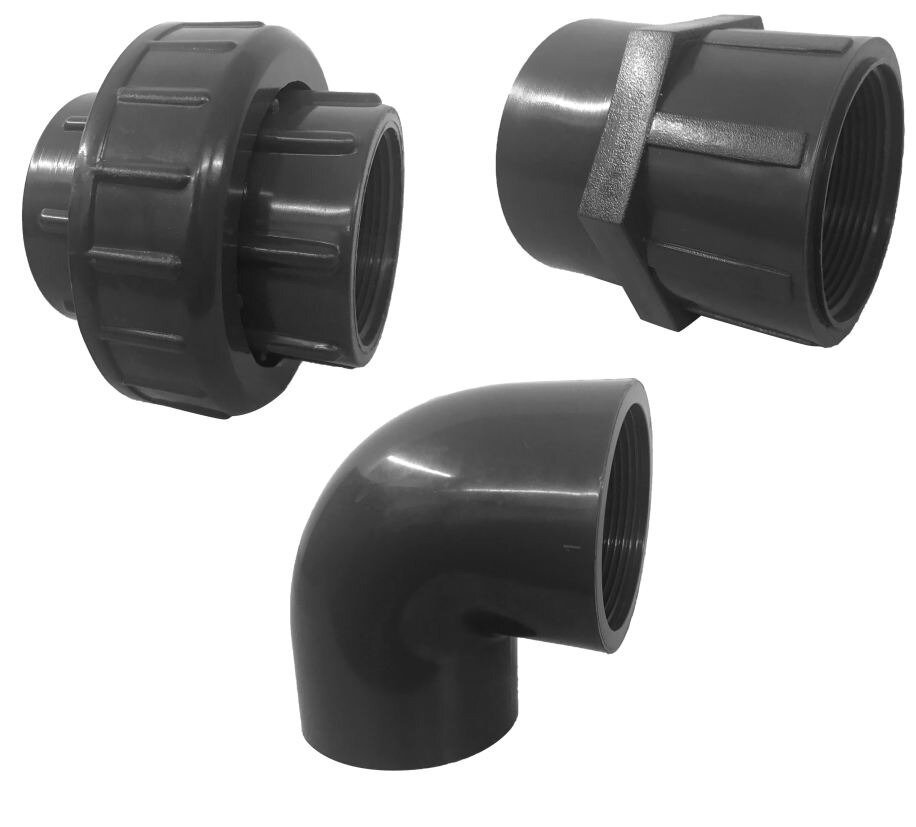

Pressure gauges, unions, sockets and elbows for irrigation piping

Pressure Gauge, Union, Socket & Elbow

¼" male threaded BSP/NPT pressure gauges with 50 mm and 63 mm dials in plastic or SS-304 casing, plus a full range of impact and UV resistant PVC fittings.

Normal and glycerine-filled gauge variants, 1 year warranty
Union 1½" & 2", socket 1½"–3", elbow 1½" & 2"
Threads to BSP and NPT, plain connections to ISO/ASTM/DIN/BS
Maximum working pressure PN-10

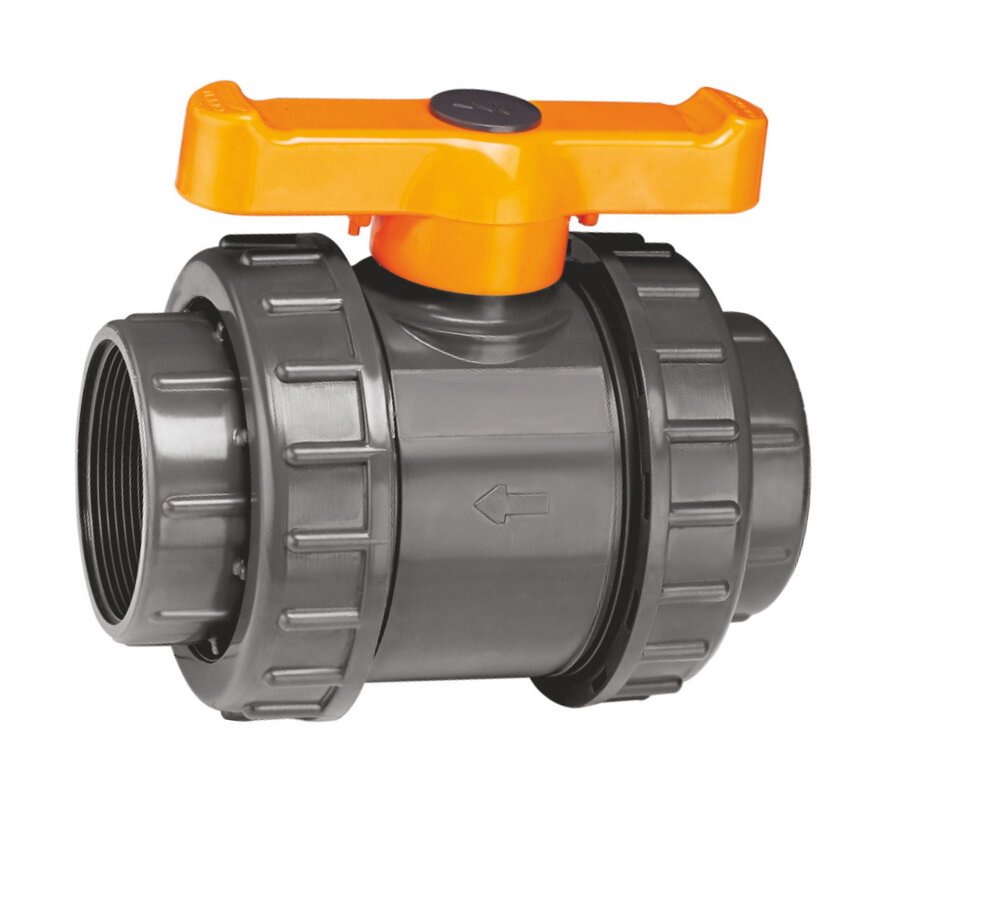

Double union PVC ball valve with orange handle

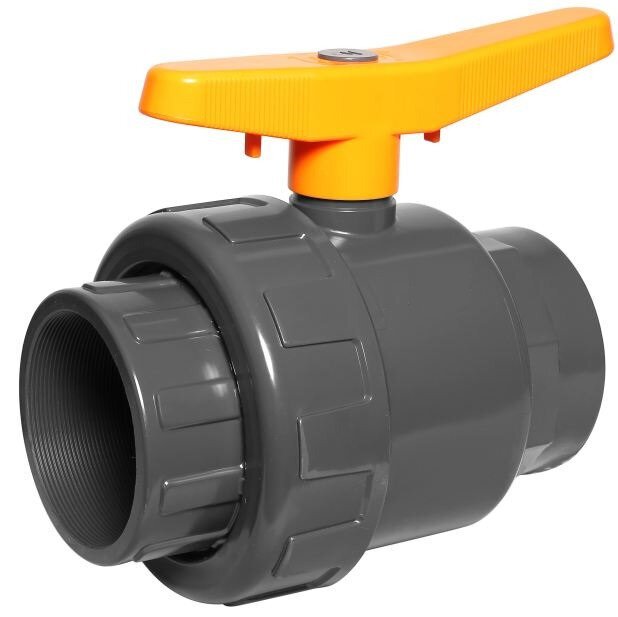

Single & Double Union PVC Ball Valve

Quarter-turn ball valves engineered to last over a decade in harsh conditions, with true union design for easy installation or repair without disturbing the pipeline.

End connections: threaded / solvent socket
16 bar for 1"–2", 10 bar for 2½" and 3"
PN-16 up to 2", PN-10 for 2½", 3" and 4" (single union)
Long handle for ease of operation
Free of vibration or chatter while opening and closing

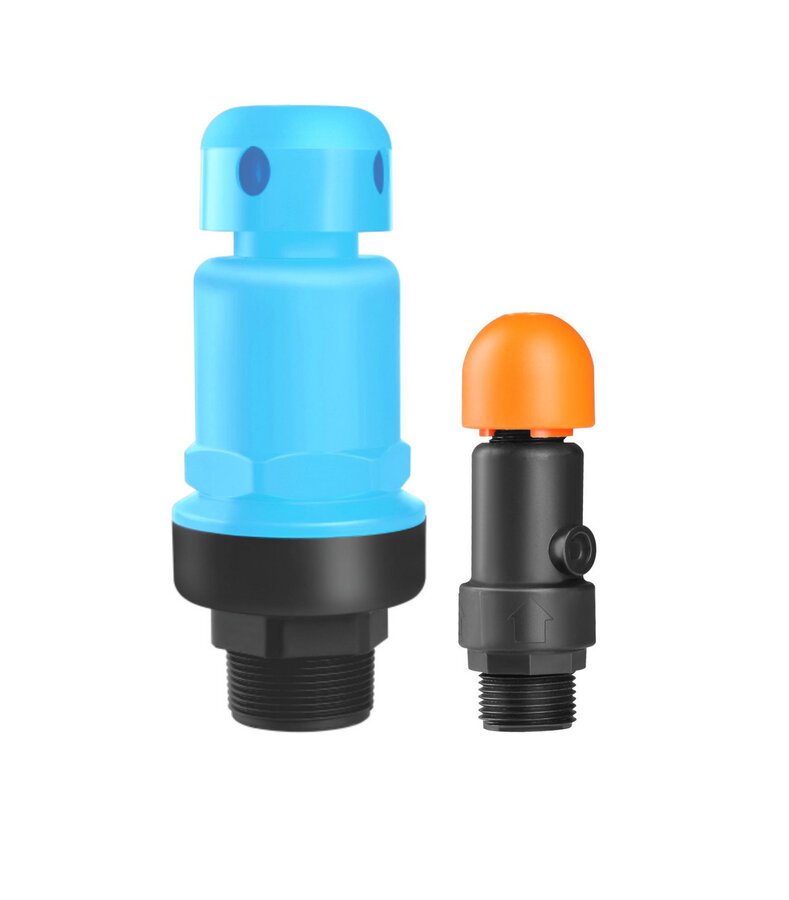

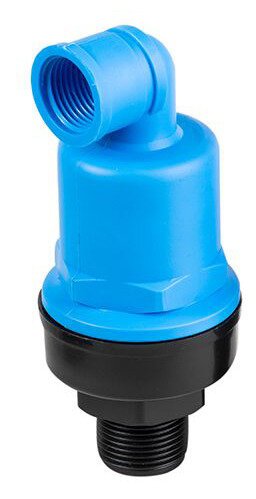

Air release and vacuum relief valves for irrigation pipelines

Air Release / Vacuum Relief & Pressure Relief Valve

Safety valves made of engineering plastic that protect pipelines and accessories — releasing trapped air while filling and relieving pressure surges caused by sudden changes in water velocity.

Reinforced polypropylene: strong, weather safe and non-corrosive
HT-87P & 88P — 100 psi; HT-89P, 90P & 91P — 175 psi
Available in ¾", 1", 1½", 2" and 3"

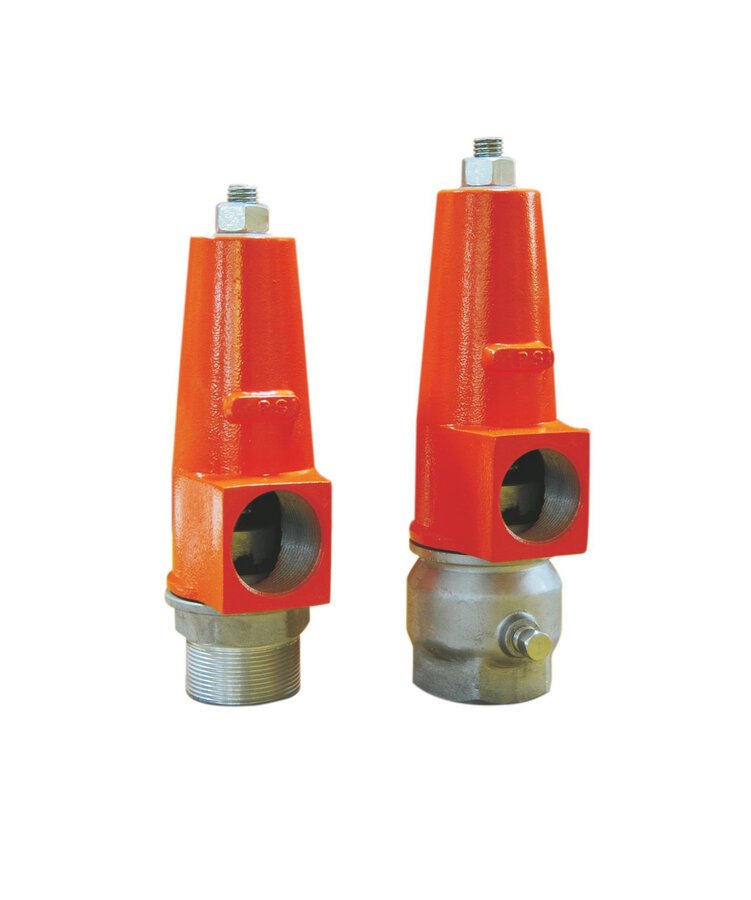

Pressure relief valve HT-102CLM / HT-102CLF (2" BSP)
Aluminium cover with 1½" BSP/NPT female threaded port

Protected Cultivation

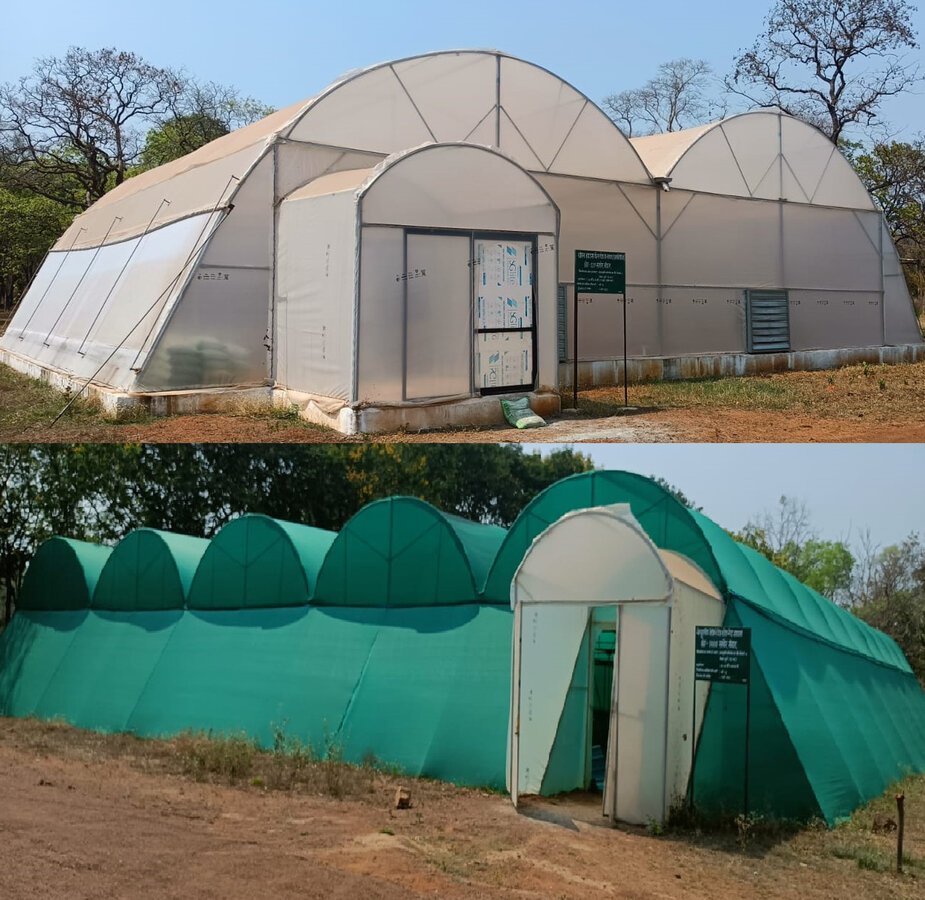

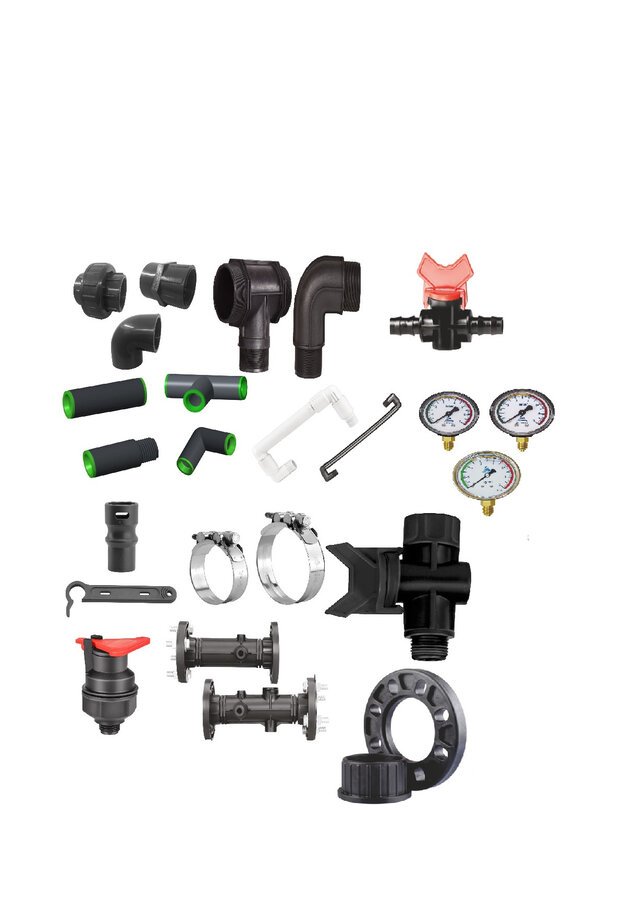

Poly house and shade net house structures built by Annabhumi

Poly House, Green House & Shade Net House

We execute poly house with fan and pad system, shade net house, green house and mist chamber works — along with a complete range of home irrigation accessories.

Poly house with fan and pad cooling system
Shade net house and green house structures
Hi-tech mist chambers and hardening chambers
Plug type and automatic plug type nursery
Complete home irrigation accessories range
